Description

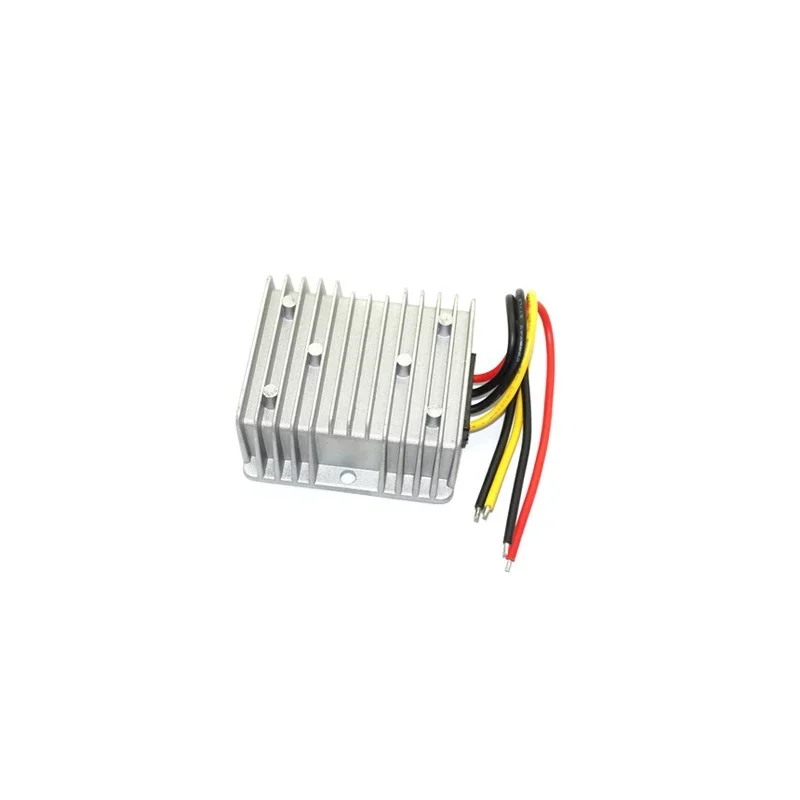

The DC/DC voltage converter from 30-120 V to 24 V is designed for stabilized power supply of 24 V devices from higher DC input voltage. Thanks to the high IP68 protection and aluminum design with fins, it is suitable for use in more demanding operating conditions, where resistance to moisture, dust and effective heat dissipation are required. The product is suitable for industrial applications, mobile technology, transportation systems and other devices powered by DC distribution.
Technical specifications
Device type: DC/DC voltage converter
Input voltage: 30-120V DC
Output voltage: 24 V DC
Maximum output current: 15 A
Rated power: 360 W
Efficiency: up to 96.3%
No-load current consumption: max. 80 mA
Protection: IP68
Working temperature: -40 to +80 °C
Ambient humidity: 0 to 95%
Construction: aluminum body with fins for heat dissipation
Protections: against overload, overvoltage, overheating and short circuit
Certification: CE, RoHS
Dimensions: 74 x 74 x 32 mm
Weight: 300g
Functions and features
Stable conversion of higher DC voltage to 24 V DC for powering sensitive and high-performance devices
Wide input voltage range for use in various DC systems
High efficiency reducing heat loss and cooling requirements
Durable sealed design suitable for outdoor and industrial installations
Integrated protection circuits for safer and more reliable operation
Compact design allows for easier installation in limited space
Ideal for
Powering 24V devices from high-voltage DC distribution lines
Industrial automation and control systems
Transportation technology and mobile applications
Camera, communication and monitoring systems
Built-ins, technological units and outdoor installations
Package contents
1x DC/DC voltage converter from 30-120 V to 24 V, 15 A, 360 W, IP68
Why choose this product?
Designed for applications requiring stable 24V power supply from a wide range of DC input voltages
Durable aluminum design supports long-term operation even in more demanding environments
High IP68 protection increases suitability for use in dusty and humid environments
Integrated protections help protect both the drive and connected equipment
Clearly defined technical parameters facilitate design and integration into the system
Installation and operating instructions
During installation, it is necessary to observe the correct polarity of the input and output lines.
Install the inverter on a suitable surface that allows heat to dissipate from the aluminum body.
For reliable operation, we recommend using wires with an appropriate cross-section for the transmitted current.
Operate the device only within the specified input voltage and output load range.
When installing in an enclosed space, it is advisable to take into account the ambient temperature and cooling conditions.
Safety notice
The device input contains a direct voltage of up to 120 V DC, which can be dangerous if handled improperly.
We recommend that installation and connection be carried out only by a qualified person with knowledge of working with devices above 60 V DC.
Always disconnect power before connecting, maintaining, or disconnecting equipment.
Avoid short circuits at both input and output and do not exceed specified electrical parameters.
Do not use the device if it is mechanically damaged or if the power cords have been damaged.
