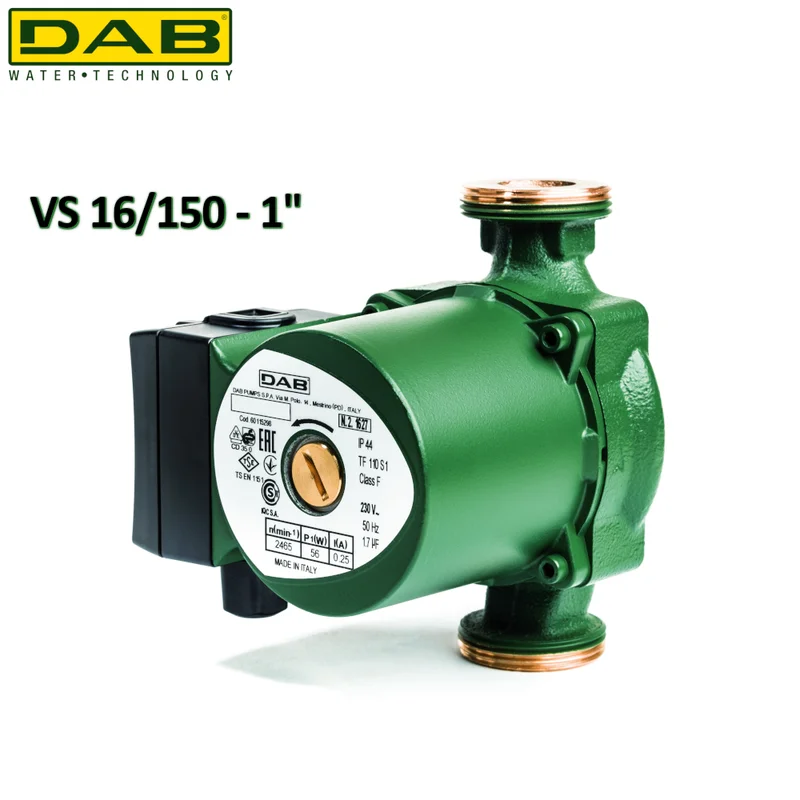

60182216H – WET ROTOR CIRCULATOR – DAB VS 16/150
For domestic hot water 1
Description:
Circulation pump for domestic hot water systems of the closed and pressurized type or open tank type.
Also suitable for solar energy systems.
Construction features:
Single-body structure composed of bronze hydraulic part and wet rotor motor
Motor casing made of die-cast aluminum
Impeller in technopolymer
Shaft in hardened stainless steel mounted on graphite bushings lubricated by the pumped liquid
Rotor sleeve, stator sleeve, and closing flange in stainless steel
Thrust ring in ceramic, sealing rings in silicone, and air vent plug in brass
The two-pole, asynchronous wet rotor motor is protected by resistance and does not require overload protection
Operates at three speeds
Protection rating: IP 44
Insulation class: F
Cable gland: PG 11
Installation: with horizontal motor shaft
Standard voltage: single-phase 230 V / 50 Hz
Special versions on request: other voltages and/or frequencies
Product code: 60182216H
