Description

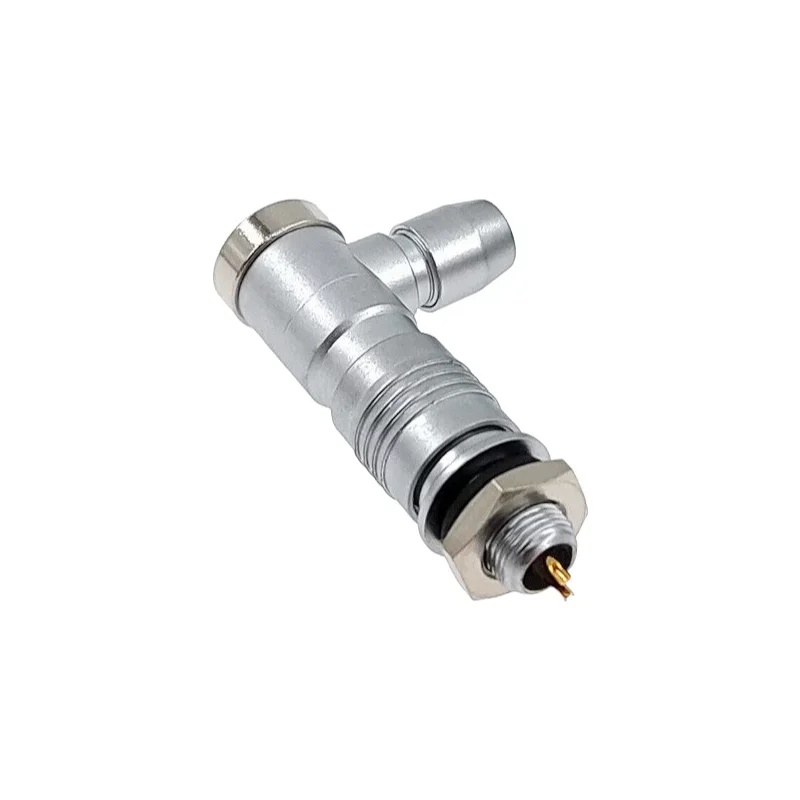

Waterproof docking connector for wires with a diameter of 4 mm. Bayonet design. Gold plated contacts. Suitable for sensors with DC voltage.
Mounting hole diameter: 6mm
Protection: IP65
Insulation resistance: 100 m
Rated voltage: 30V DC, 0.2A
Working temperature: -25 – 85°C
Relative humidity: 90% – 95%
Material: Metal (brass with nickel plating)
The package contains both a male and a female
Weight: 10g
| Type: XS6 | 2-pin | 3-pin | 4-pin | 5-pin |
| Average contacts | 1.6mm | 1.6mm | 1 mm | 1 mm |
| Max. current | 3.5A | 3.5A | 3.5A | 3.5A |
| Max. Tension | 30V | 30V | 30V | 30V |
| Max. cable cross-section | 0.6mm 2 | 0.6mm 2 | 0.6mm 2 | 0.6mm 2 |
